Prize Winning Eco-Home

Edinburgh

"Please thank your team for their prompt and attentive service with the heat pump and solar PV installation at Grange Loan. We can say it has proven to be a very shrewd investment, not only in terms of our own eco credibility, but the hugely significant impact the renewables achieved in the marketing process. We are delighted to report an early sale was achieved"

Director of Playfair Properties

The Requirement

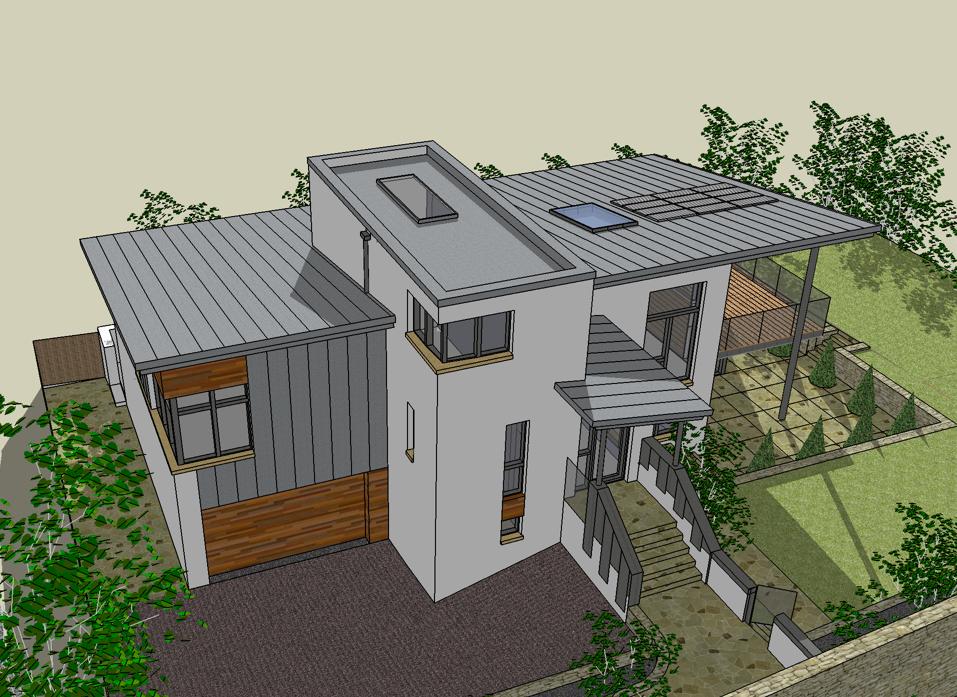

Solar & Wind Applications was contracted by property developer Playfair Properties to design and install an environmentally friendly heating system for this 5-bedroom new build property near Edinburgh city centre. A renewable source of electricity was also required to cover some of the required electricity.

The System We Provided

12kW NIBE ground source heat pump and a 1.56kW solar PV System. We worked alongside the construction company and the contractors on site to deliver the technologies in time for the property going onto the market. In this high-end home extremely high comfort levels were a demand right from the start, so the heating system was designed to use underfloor heating fed from the heat pump.

The Environmental Benefits

Heat pump will reduce energy consumption by up to 75% compared with a “conventional” heating system. The system also maintains a constant comfortable temperature in the home, and plenty of hot water.

The Solar PV system will provide power for the heat pump and other household appliances,  generating around 1250 kWh of green electricity annually, saving 537kg of CO2

Additional Benefits

This modern home started out with demanding standards, which paid off to the designers. The home won a Home of the Year award, and sold very soon after going onto the market.

What We Did

The Heat Pump uses two 80m vertical boreholes on the site, drilled by a specialist contractor, which took 2 days. The remainder of the project took around 7 days to complete, working around other trades on site. Solar and Wind Applications also carry out annual maintenance as well as being on hand for if there are any issues with the heating system.
